Description

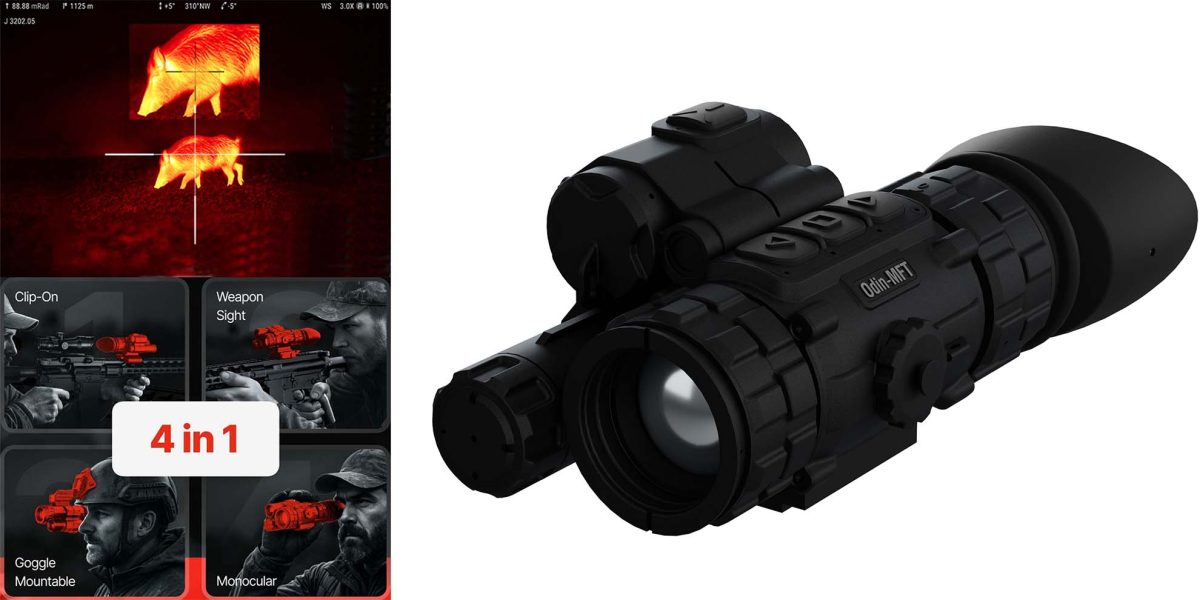

The ATN Odin 6 is a multi-functional thermal optic built around a 640×480 sensor, 25mm germanium lens, and 1-8x magnification. Its four operating modes support use as a handheld monocular, helmet-mounted optic, clip-on unit, or dedicated sight, making it a flexible choice for field observation and night-time applications.
Key Specifications
- A 640×480 thermal sensor provides detailed heat-based imaging.
- The 1-8x magnification range supports broad viewing and more detailed observation.
- A 25mm F/1.0 germanium lens supports thermal transmission through the optical system.
- The 50Hz refresh rate helps produce smooth thermal imagery during movement.
- A thermal sensitivity rating of 15mK NETD supports contrast between heat signatures.
- The 17.5° x 13.2° field of view provides a wide viewing area.
- A 1280×1024 OLED display presents the thermal image through the eyepiece.
- 1x, 2x, 4x, and 8x digital zoom levels provide additional viewing flexibility.
- 64GB of internal storage supports integrated video and audio recording.
- IP67 protection and a magnesium alloy housing support use in demanding outdoor conditions.
The Odin 6 is suited to users who need one thermal platform for observation, helmet mounting, clip-on applications, or sighting configurations. Its recording functions, configurable reticles, USB Type-C interface, and support for either an 18650 or CR123 battery add practical flexibility without changing the compact multi-role format.
